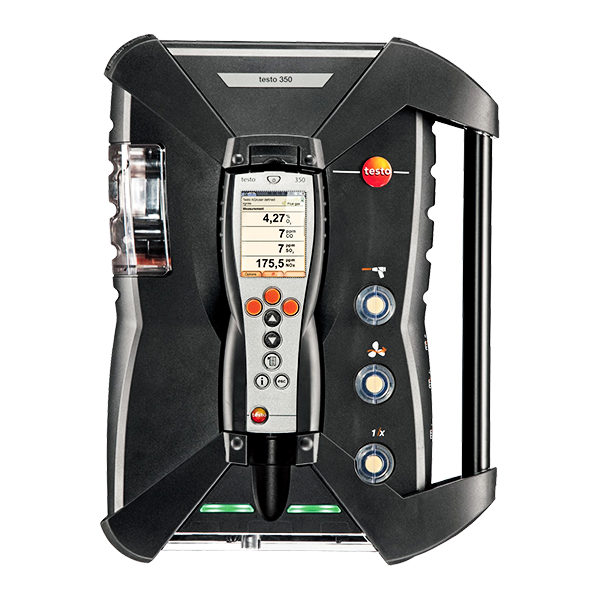

Testo 350 Flue Gas Analyzer

Iconic Engineering Limited

Testo 350 Flue Gas Analyzer that provides 100% accurate result and Tolls Bangladesh it's providing with the best price in Bangladesh.

In stock

Model: Testo 350 Flue Gas Analyzer

Testo 350 Flue Gas Analyzer Ideal for professional exhaust gas analysis and industrial emission measurements and that provides the rugged and reliable results to test point.

The Testo 350 exhaust gas analyzer is a rugged piece of kit designed to meet the demands of a variety of different measuring and analysis applications. It is also excellently suited for complex data compilation.

Always the Testo product that you will get from Tools Bangladesh. Order from here if you need it and get the facility for delivery anywhere in Bangladesh for free.

Specifications: Testo 350 Flue Gas Analyzer

Temperature - NTC
Measuring range	-20 to +50 °C
Accuracy	±0.2 °C (-10 to +50 °C)
Resolution	0.1 °C (-20 to +50 °C)

Ambient temperature probe

Temperature - TC Type K (NiCr-Ni)
Measuring range	-200 to +1370 °C
Accuracy	±0.4 °C (-100 to +200 °C) ±1 °C (-200 to -100.1 °C) ±1 °C (200.1 to +1370 °C)
Resolution	0.1 °C (-200 to +1370 °C)

Temperature - TC Type K (NiCr-Ni)

Measuring range

-200 to +1370 °C

Accuracy

±0.4 °C (-100 to +200 °C)

±1 °C (-200 to -100.1 °C)

±1 °C (200.1 to +1370 °C)

Resolution

0.1 °C (-200 to +1370 °C)

Temperature - TC Type S (Pt10Rh-Pt)
Measuring range	0 to +1760 °C
Accuracy	±1 °C (0 to +1760 °C)
Resolution	0.1 °C (0 to +1760 °C)

Differential Pressure - Piezoresistive
Measuring range	-40 to +40 hPa -200 to +200 hPa
Accuracy	±1.5 % of mv (-40 to -3 hPa) ±1.5 % of mv (+3 to +40 hPa) ±0.03 hPa (-2.99 to +2.99 hPa) ±1.5 % of mv (-200 to -50 hPa) ±1.5 % of mv (+50 to +200 hPa) ±0.5 hPa (-49.9 to +49.9 hPa)
Resolution	0.01 hPa (-40 to +40 hPa) 0.1 hPa (-200 to +200 hPa)

Differential Pressure - Piezoresistive

Measuring range

-40 to +40 hPa

-200 to +200 hPa

Accuracy

±1.5 % of mv (-40 to -3 hPa)

±1.5 % of mv (+3 to +40 hPa)

±0.03 hPa (-2.99 to +2.99 hPa)

±1.5 % of mv (-200 to -50 hPa)

±1.5 % of mv (+50 to +200 hPa)

±0.5 hPa (-49.9 to +49.9 hPa)

Resolution

0.01 hPa (-40 to +40 hPa)

0.1 hPa (-200 to +200 hPa)

Absolute Pressure
Measuring range	600 to +1150 hPa
Accuracy	±10 hPa
Resolution	1 hPa

Flue gas O₂
Measuring range	0 to +25 Vol.%
Accuracy	±0.8% of fsv (0 to +25 Vol.%)
Resolution	0.01 Vol.% (0 to +25 Vol.%)
Reaction time t₉₀	20 s (t₉₅)

Flue gas CO (with H₂-compensation)
Measuring range	0 to +10000 ppm
Accuracy	±5 % of mv (+200 to +2000 ppm) ±10 % of mv (+2001 to +10000 ppm) ±10 ppm (0 to +199 ppm)
Resolution	1 ppm (0 to +10000 ppm)
Reaction time t₉₀	40 s

H₂ only as an indicator

Flue gas COlow
Measuring range	0 to 500 ppm
Accuracy	±5 % of mv (+40 to +500 ppm) ±2 ppm (0 to +39.9 ppm)
Resolution	0.1 ppm (0 to +500 ppm)
Reaction time t₉₀	40 s

H₂ only as an indicator

Flue gas NO
Measuring range	0 to +4000 ppm
Accuracy	±5 % of mv (+100 to +1999 ppm) ±10 % of mv (+2000 to +4000 ppm) ±5 ppm (0 to +99 ppm)
Resolution	1 ppm (0 to +4000 ppm)
Reaction time t₉₀	30 s

Flue gas Nolow
Measuring range	0 to +300 ppm
Accuracy	±5 % of mv (+40 to +300 ppm) ±2 ppm (0 to +39.9 ppm)
Resolution	±0.1 ppm (0 to +300 ppm)
Reaction time t₉₀	30 s

Flue gas NO₂
Measuring range	0 to +500 ppm
Accuracy	±5 % of mv (+100 to +500 ppm) ±5 ppm (0 to +99.9 ppm)
Resolution	0.1 ppm (0 to +500 ppm)
Reaction time t₉₀	40 s

Flue gas SO₂
Measuring range	0 to +5000 ppm
Accuracy	±5 % of mv (+100 to +2000 ppm) ±10 % of mv (+2001 to +5000 ppm) ±5 ppm (0 to +99 ppm)
Resolution	1 ppm (0 to +5000 ppm)
Reaction time t₉₀	30 s

Flue gas degree of effectivity, Eta (calculated)
Measuring range	0 to +120 %
Resolution	0.1 % (0 to +120 %)

Flue gas loss (calculated)
Measuring range	0 to +99.9 %
Resolution	0.1 % (0 to +99.9 %)

Flue gas dewpoint (calculated)
Measuring range	0 to +99.9 °Ctd
Resolution	0.1 °Ctd (0 to +99.9 °Ctd)

Flue gas CO₂ calculation (calculated from O₂)
Measuring range	0 to CO₂ max
Accuracy	calculated from O₂ ±0.2 Vol.%
Resolution	0.01 Vol.%

Flue gas H₂S
Measuring range	0 to +300 ppm
Accuracy	±5 % of mv (+40 to +300 ppm) ±2 ppm (0 to +39.9 ppm)
Resolution	0.1 ppm (0 to +300 ppm)
Reaction time t₉₀	35 s

Flue gas CO₂ - NDIR
Measuring range	0 to +50 Vol.%
Accuracy	±0.3 Vol.% + 1 % of mv (0 to 25 Vol.%) ±0.5 Vol.% + 1.5 % of mv (>25 to 50 Vol.%)
Resolution	0.01 Vol.% (0 to 25 Vol.%) 0.1 Vol.% (> 25 Vol.%)
Reaction time t₉₀	10 s

Velocity / Volume flow
Measuring range	0 to +40 m/s
Resolution	0.1 m/s (0 to +40 m/s)

Methane (CH₄)
Measuring range	100 to 40000 ppm
Accuracy	< 400 ppm (100 to 4000 ppm) < 10 % of mv (> 4000 ppm)
Resolution	10 ppm
Min. O₂ requirement in flue gas	2 % + (2 x mV methane)
Reaction time t₉₀	< 40 s
Response factor	1

Lower explosion limit (LEL) must be adhered to.
The HC sensor is adjusted to methane ex-works. It can be adjusted to a different gas (propane or butane) by the user.

Propane (C₃H₈)
Measuring range	100 to 21000 ppm
Accuracy	< 400 ppm (100 to 4000 ppm) < 10 % of mv (> 4000 ppm)
Resolution	10 ppm
Min. O₂ requirement in flue gas	2 % + (5 x mV propane)
Reaction time t₉₀	< 40 s
Response factor	1.5

Lower explosion limit (LEL) must be adhered to.
The HC sensor is adjusted to methane ex-works. It can be adjusted to a different gas (propane or butane) by the user.

Butane (C₄H₁₀)
Measuring range	100 to 18000 ppm
Accuracy	< 400 ppm (100 to 4000 ppm) < 10 % of mv (> 4000 ppm)
Resolution	10 ppm
Min. O₂ requirement in flue gas	2 % + (6.5 x mV butane)
Reaction time t₉₀	< 40 s
Response factor	2

Lower explosion limit (LEL) must be adhered to.
The HC sensor is adjusted to methane ex-works. It can be adjusted to a different gas (propane or butane) by the user.

General technical data
Weight	4800 g
Dimensions	330 x 128 x 438 mm
Operating temperature	-5 to +45 °C
Product-/housing material	ABS
Protection class	IP40
Product colour	Black
Connectable probes	1 x combustion air temperature probe; 1 x flue gas probe; 1 x temperature probe; 1 x differential pressure
Battery type	lithium batteries
Battery life	5 h
Power supply	AC mains unit 100V to 240V (50 to 60 Hz)
DC electric tension input	11V to 40V
Dewpoint calculation	0 °Ctd; 99 °Ctd
Max. dust load	20 g/m³ dust in flue gas
Max. neg. press./flue gas	-300 mbar
Max. pos. press./flue gas	50 mbar
Trigger input	Voltage 5 to 12 Volt (rising or trailing edge) pulse width > 1 sec load: 5 V/max, 5 mA, 12 V/max. 40 mA
Max. humidity load	70 °C dewpoint temperature
Hose length	16.2 m (corresponds to 5 probe hose extensions)
Pump flow	1 l/min. with through-flow monitoring
Maximum memory	250,000 readings
Interface	data bus; Bluetooth®; USB; IR/IRDA interface; Mains connection; trigger input; Differential Pressure; probe input/ probe inputs; DC-voltage input; dilution gas inlet for measurement range extension
Storage temperature	-20 to +50 °C
