Kyoritsu 3128 Digital 12 kV Insulation Tester

TMI Biotech Corporation

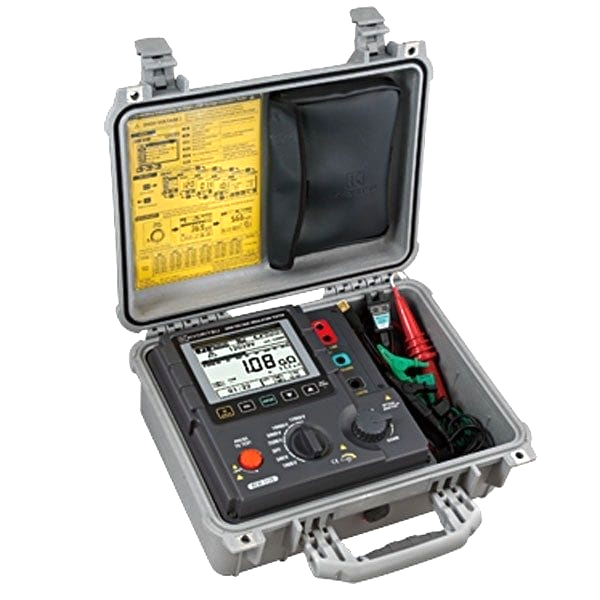

Kyoritsu 3128 Digital 12 kV Insulation Tester is a digital CAT IV High Voltage Insulation Tester with the capabilities of testing insulation resistance up to 35TΩ.

In stock

The Kyoritsu 3128 is a digital CAT IV High Voltage Insulation Tester subsequent to the capabilities of psychiatry insulation resistance taking place to 35T, once test voltages going on to 12kV. The 3128 model is meant for arena use when an IP64 rating and features a large LCD display taking into consideration backlight.

The Kyoritsu 3128 is a microprocessor-controlled high voltage insulation resistance tester, following various logical functions. Such functions meet the expense of the take absorb to test the polarization index (PI), the dielectric absorption ratio (DAR) and the dielectric discharge (DD). Step voltage (SV) measurements can be applied, where successive voltage increments are implemented, to test the degradation of insulation. Insulation resistance can be measured occurring to 35T when test voltages going on to 12kV using this instrument.

Specifications: Kyoritsu 3128 Digital 12 kV Insulation Tester

Insulation resistance (*): Accuracy is not guaranteed with setting of 250V or less

Rated voltage	500V	1000V	2500V	5000V	10000V	12000V
Max measurement value	500GΩ	1TΩ	2.5TΩ	5TΩ	35TΩ
Accuracy	400k～50GΩ ±5%rdg±3dgt (*)	800k～100GΩ 5%rdg±3dgt	2M～250GΩ ±5%rdg±3dgt	4M～500GΩ ±5%rdg±3dgt	8M～1TΩ ±5%rdg±3dgt
	50G～500GΩ ±20%rdg (*)	100G～1TΩ ±20%rdg	250G～2.5TΩ ±20%rdg	500G～5TΩ ±20%rdg	1T～10TΩ ±20%rdg
	50G～500GΩ ±20%rdg (*)	100G～1TΩ ±20%rdg	250G～2.5TΩ ±20%rdg	500G～5TΩ ±20%rdg	10T - 35TΩ Values are displayed, but accuracy isn't guaranteed
Short circuit current	Max 5.0mA
Load resistor to output rated voltage	0.5MΩ or more	1MΩ or more	2.5MΩ or more	5MΩ or more	20MΩ or more	24MΩ or more

Output voltage

Rated voltage	500V	1000V	2500V	5000V	10000V	12000V
Monitor accuracy	±10%±20V	±10%±20V	±10%±20V	±10%±20V	±10%±20V	±10%±20V
Output accuracy	0 - +20%	0 - +10%	0 - +10%	0 - +10%	-5 - +5%	-5 - +5%
Selectable range	50 - 600V (in steps of 5V)	610 - 1200V (in steps of 10V)	1225 - 3000V (in steps of 25V)	3050 - 6000V (in steps of 50V)	6100 - 10000V (in steps of 100V)	10100 - 12000V (in steps of 100V)

Voltage measurement

Measuring range	DCV：±30 ～ ±600V、ACV：30 ～ 600V （50/60Hz）
Accuracy	±2%rdg±3dgt

Current measurement

Measuring range	5.00nA - 2.40mA (Depending on the insulation resistance)

Capacitance measurement

Measuring range	5.0nF ～ 50.0μF (500V/1000V/2500V/5000V)	5.0nF - 1.0µF (display range: 5.0nF - 50.0µF) (10000V/12000V)
Accuracy	±5%rdg±5dgt

General

Applicable standards	IEC 61010-1 CAT IV 600V Pollution degree 2, IEC 61010-031, IEC 61326, IEC 60529 (IP64): with the lid closed.
Operating temperature & humidity range	-10ºC - Relative humidity 85% or less 50ºC /(when operating with an external power supply, no condensation) 0ºC - 40ºC /Relative humidity 85% or less (when operating with battery, no condensation)
Storage temperature & humidity range	-20ºC - 60ºC / Relative humidity 75% or less (no condensation)
Power source	Rechargeable Lead storage battery (12V)* Charging time: approx. 8 hours / AC Power supply (100V - 240V, 50/60Hz) * Continuous measuring time: approx. 4 hours (a load of 100MΩ at the Insulation resistance 12000V Range.) approx. 2 hours (Max current consumption in range while rated currents are maintained.)
Dimensions	330 (L) × 410 (W) × 180 (D) mm *Instrument and Hard case
Weight	9kg approx. (including battery) *Instrument and Hard case

Accessories: Kyoritsu 3128 Digital 12 kV Insulation Tester

Included Accessories	7170 (Main cord), 7224A (Earth cord), 7225A (Guard cord), 7226A (Line probe), 7227A (Line probe with alligator clip), 8029 (Extension prod), 8212-USB-W (USB adaptor with KEW Windows (Software)), Instruction manual
Optional Accessories	7254 (Longer Line probe with alligator clip)
