Impulse 6000D Defibrillator Analyzer and Tester
Impulse 6000D Defibrillator Analyzer and Tester
Portable, Rugged, Easy-to-Carry Device

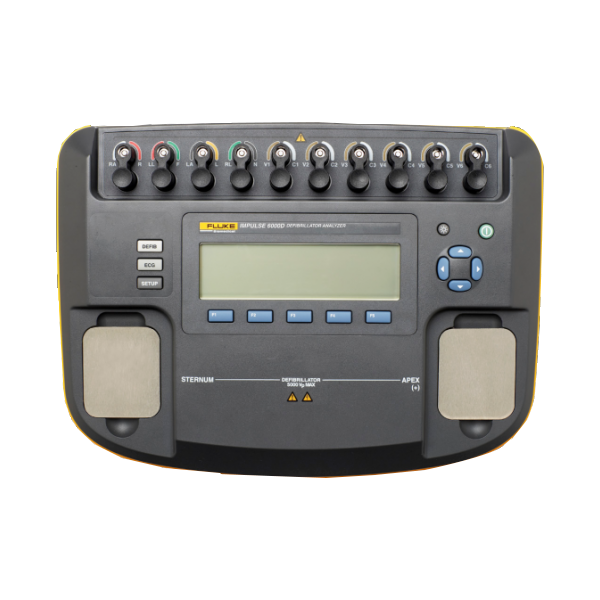

The Impulse 6000D model is a Defibrillator Analyzer is a portable, rugged, easy-to-carry device with an intuitive user interface, backlight and easy-to-read display. With functionality that includes energy output measurement and ECG wave testing, the Impulse 6000D features 10 independent ECG outputs that provide 12 lead combinations for standardized clinical signals.
Impulse 6000D Defibrillator Analyzer and Tester
Key Features
- IEC 60601-2-4 Compliance
- Lown, Edmark, trapezoidal, biphasic and pulsed-biphasic defibrillation technology compatibility
- AED compatibility
- 12-lead ECG simulation
- Internal pacer brand selections
- Flexible heart-rate settings (1BPM step)
- DSP-based measurements for firmware and waveform upgrade
- Waveform capture, store and replay
- First-in-class accuracy ± 1% of reading + 0.1J
- Long lasting, rechargeable battery
Specifications: Impulse 6000D Defibrillator Analyzer and Tester
- Coming Soon.
Impulse 6000D Defibrillator Analyzer and Tester
All models include:
- USB Computer Communication Cable (cable assembly)
- User Manual CD (CD-ROM)
- Getting Started Guide (Manual)
- Battery Eliminator (country-specific)
- Defib Paddle Contact Plates (FBC-IMP7000-8010)
- Carrying Case (soft case)
Standard Accessories: Impulse 6000D Defibrillator Analyzer and Tester
Adapters
- I6/7 D/P ADPT101
GE Marquette defib/pacer adapter (part# 3065423)(RESPONDER1500/1700 Series) (set of two) 4mm
- I6/7 D/P ADPT104
Medtronic ERS/Physio-Control Defib/Pacer adapter (part# 3065461)(QUIK COMBO) 4mm
- I6/7 D/P ADPT107
Philips/Agilent/HP Defib/Pacer adapter (part# 3065492)(CODEMASTER Series-Round) 4mm
- I6/7 D/P ADPT108
Philips/Agilent Defib/Pacer adapter (part# 3065509)HEARTSTART FR2/MRX 4mm
- I6/7 D/P ADPT109
Zoll Medical PD2200 Multi-Function Series electrodes (part# 3065511)
- FBC-IMP7000-8010
FBC-IMP7000-8010 defib plate (part# 3156262) *Each unit requires two.
- I6/7 D/P ADPT102
Internal discharge paddle contacts (2) (4mm) (part# 3065438)
- I6/7 D/P ADPT103
Kimberly Clark/R2 Darox MRL/MDE/NK: 4 mm defibrillator adapters (part# 3065450)
- I6/7 D/P ADPT106
MedtronicERS/Physio-Control (part# 3065489)(FAST PATCH) (set of two) 4mmfor Impulse 6000D/7000DP
- I6/7 D/P ADPT105
Medtronic ERS/Physio-Control pacer adapter (part# 3065477)(QUIK PACE) (set of two): 4 mm
- I6/7 D/P ADPT110
Zoll Medical NTP/PD1400:4 mm pacer adapters (part# 3065527)
