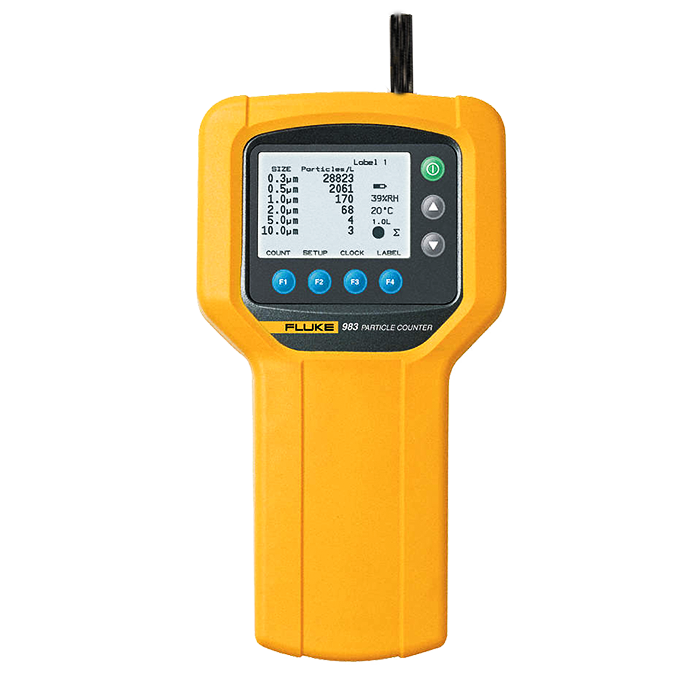

Model: Fluke 983 Particle Counter
Fluke 983 Particle Counter is affordable and easy to use which is popular in the world. Measures & displays 6 channels of particle size distribution, temperature & humidity down to 0.3 µm. Fluke 983 Particle Counter not only provide the best result but also the value of this meter always spot on.
By Fluke 983 Particle Counter is Selectable sample time, count data, programmable delay.
The Fluke 983 Particle Counter is the preferred choice for HVAC and IAQ professionals. Buy this affordable product through Tools Bangladesh with the best price. So don't miss out.
Key Features: Fluke 983 Particle Counter
- Compact and lightweight (1.0 kg/2.2 lbs)
- Graphic liquid crystal display with backlight
- AC adapter, 12 V dc at 2.5 A, 90 to 250 V ac, 50 to 60 Hz
- Rechargeable battery (NiMH, 4.8 V at 4.5 Ah)
- Simple user interface
- Operating: 10 ˚C to 40 ˚C (50 ˚F to 104 ˚F), 20 % to 90 % relative humidity, non-condensing
- Meets JIS B9921:1997 and CE standards
- Hard molded plastic case
Specifications: Fluke 983 Particle Counter
| Specifications |
| Channels |
| |
0.3, 0.5, 1.0, 2.0, 5.0, 10.0 µm |
|
| Flow Rate |
| |
0.1 cfm (2.83 L/min) controlled by internal pump |
|
| Count Modes |
| |
Concentration, totalize, audio |
|
| Counting Efficiency |
| |
50% @0.3 µm; 100% for particles > 0.45 µm (per JIS B9921:1997) |
|
| Zero Count |
| |
1 count/5 minute (JIS B9921:1997) |
|
| Coincidence Loss |
| |
5% at 2,000,000 particles per ft3 |
|
| Relative Humidity |
| |
± 7%, 20% to 90% non-condensing |
|
| Temperature |
| |
± 3 ˚C, 10 ˚C to 40 ˚C (50 ˚F to 104 ˚F) |
|
| Data Storage |
| |
5000 sample records (rotating buffer) of date, time, counts, relative humidity, temperature, sample volumes, alarms, label |
|
| Alarms |
| |
Counts, low battery, sensor fail |
|
| Delay Time |
|
| Sample Inlet |
|
| Interface |
| |
RS-232 and RS-485 via RJ-45 |
|
| Environmental Specifications |
| Operating |
| |
10 ˚C to 40 ˚C (50 ˚F to 104 ˚F), 20% to 90% relative humidity, non-condensing |
|
| Storage |
| |
-10 ˚C to 50 ˚C (14 ˚F to 122 ˚F), up to 90% relative humidity, non-condensing |
|
| Mechanical & General Specifications |
| Size |
| |
11.43 cm x 20.96 cm x 5.72 cm (4.5 in x 8.25 in x 2.25 in) |
| |
Dimensions (W x L x D) |
|
| Weight |
|
| Power |
| |
AC adapter, 12 V DC at 2.5A, 90 to 250 V AC, 50 to 60 Hz |
|
| Rechargeable Battery |
| |
NiMH, 4.8 V at 4.5 Ah; replaceable |
|
| Battery Life |
|
| Recharge Time |
|
| Calibration |
| |
PSL particles in air (NIST traceable) |
|
Includes: Fluke 983 Particle Counter
- Certificate of Calibration (NIST)
- Windows-compatible software download utility
- DB9 to RS-232 adapter and cable
- Isokinetic probe
- Zero count filter
- High purity tubing
- 1/8 in. hose barb adapter
- Power supply
- Operation manual
- Hard molded plastic case
