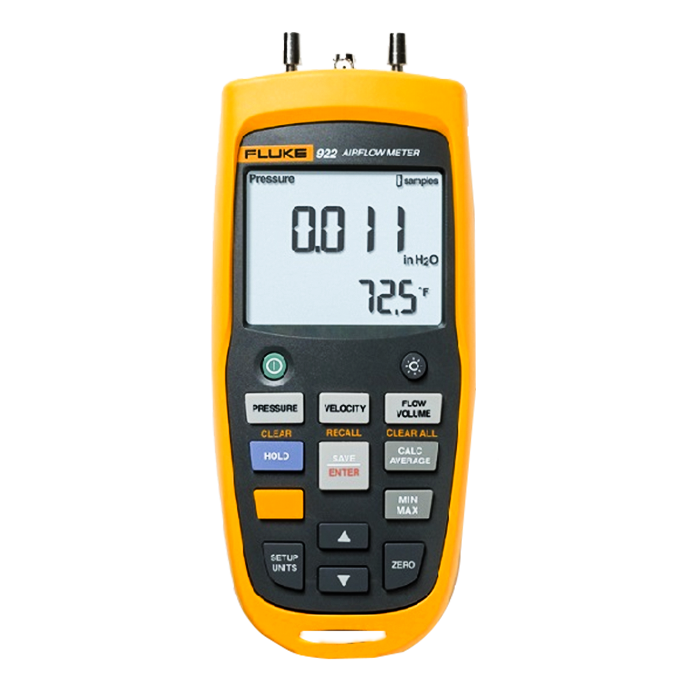

Fluke 922 Airflow Meter
The Fluke 922 makes airflow measurements easy by combining differential pressure, airflow, and velocity into a single, rugged and reliable meter. Buy form Tools Bangladesh.
Model: Fluke 922 Airflow Meter
Fluke 922 Airflow Meter Today’s HVAC technicians want a simple solution for diagnosing ventilation issues. Differential pressure measurements only tell part of the story. Technicians also want to measure air velocity and flow, without having to resort to expensive, difficult to use, specialist tools. The Fluke 922 makes airflow measurements easy by combining three tools: differential pressure, airflow, and velocity into a single, rugged meter.
You never try to search for it anywhere in Bangladesh. You do not find it anywhere in Bangladesh. Because of we Iconic Engineering only one authorized distributor of Fluke Corporation. So, If you buy the original rugged and reliable product then you may check out through Tools Bangladesh.
Key features: Fluke 922 Airflow Meter
- Powerful meter provides differential and static pressure, air velocity and flow readings
- Convenient colored hoses help proper interpretation of pressure readings
- Easy to use without sacrificing performance
- Bright, backlit display for clear viewing in all environments
- User-defined duct shape and size for maximum airflow accuracy
- Resolution down to 0.001 inH2O
- 99 point data storage capacity
- Min/Max/Average/Hold functions for easy data analysis
- Auto power off saves battery life
Specifications: Fluke 922 Airflow Meter/Micromanometer
| Technical Specifications | ||
| Air pressure | Range / Resolution / Accuracy | ±4000 Pascals / 1 Pascal / ±1% + 1 Pascal |
| ±16 inH2O / 0.001 inH2O / ±1% + 0.01 inH2O | ||
| ±400 mmH2O / 0.1 mmH2O / ±1% + 0.1 mmH2O | ||
| ±40 mbar / 0.01 mbar / ±1% + 0.01 mbar | ||
| ±0.6 psi / 0.0001 psi / ±1% + 0.0001 psi | ||
| Air velocity | Range / Resolution / Accuracy | 250 to 16,000 fpm / 1 fpm / ±2.5% of reading at 2000 fpm (10.00 m/s) |
| 1 to 80 m/s / 0.001 m/s / ±2.5% of reading at 2000 fpm (10.00 m/s) | ||
| Air flow (volume) | Range / Resolution / Accuracy | 0 to 99,999 cfm / 1 cfm / Accuracy is a function of velocity and duct size |
| 0 to 99,999 / 1 m3/hr / Accuracy is a function of velocity and duct size | ||
| 0 to 99,999 l/s / 1 l/s / Accuracy is a function of velocity and duct size | ||
| Temperature | Range / Resolution / Accuracy | 0°C to 50°C / ±1% + 2°C / 0.1°C |
| 32°F to 122°F / ±1% + 4°F / 0.1°F | ||
| General Specifications | ||
| Operating temperature | 0°C to +50°C (+32°F to +122°F) | |
| Storage temperature | -40°C to +60°C (-40°F to +140°F) | |
| Relative humidity | 0% to 90%, non-condensing | |
| IP rating | IP40 | |
| Operating altitude | 2000 m | |
| Storage altitude | 12000 m | |
| EMI, RFI, EMC | Meets requirements for EN61326-1 | |
| Vibration | MIL-PREF-28800F, Class 3 | |
| Max pressure at each port | 10 psi | |
| Data storage capacity | 99 readings | |
| Warranty | 2 years | |
| Power, battery life | Four AA batteries | |
| Battery life | 280 hours without backlight, 60 hours with backlight | |
Includes: Fluke 922 Airflow Meter/Micromanometer
- Fluke 922 Airflow Meter/Micromanometer
Accessories: Fluke 922 Airflow Meter/Micromanometer
- Fluke CXT170 Extreme Case
