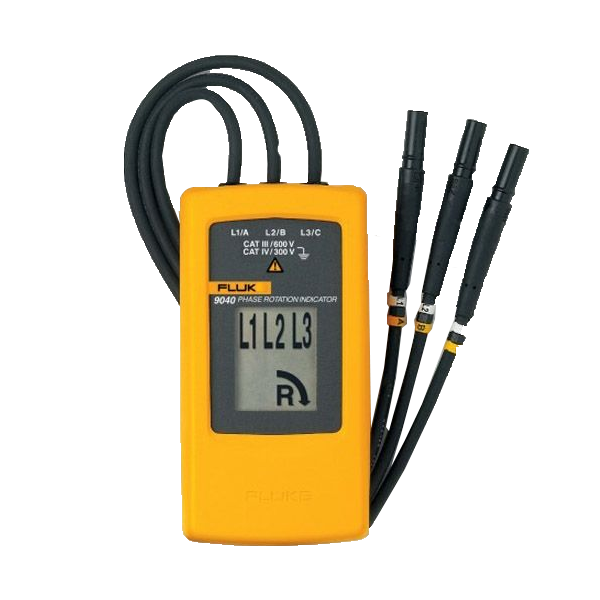

Fluke 9040 Phase Rotation Indicator
Fluke 9040 to measure phase rotation in areas where three phase supplies feed motors, drives and electrical systems. Buy now and get free delivery through Tools Bangladesh.
Model: Fluke 9040 Phase Rotation Indicator
Fluke 9040 Phase Rotation Indicator is effective for measurement section rotation all told areas wherever 3 section provides are wont to feed motors, drives and electrical systems.
Fluke 9040 may be a rotary field indicator and might offer a clear indication of the three sections via AN show|LCD|digital display|alphanumeric display} display and therefore the section rotation direction to see correct connections.
It permits fast determination of section sequence and incorporates a voltage (up to 700 V) and frequency vary appropriate for business and industrial applications. The enclosed check probes have a variable clamping vary for safe contact, conjointly in industrial sockets.
Fluke 9040 Phase Rotation Indicator is not only for an accurate result it has proved the ability on the spot that's why it' very popular now at Tools Bangladesh.
Key features of the Fluke 9040 Phase Rotation Indicator
- 3 phase indication
- Indication of phase rotation
- Clear LCD display
- No battery required
Specifications: Fluke 9040 Phase Rotation Indicator
| Technical Specifications | |
| Voltage Range | 40-700 V |
| Frequency Range | 15-400 Hz |
| Operating Timer | Continuous |
| Environmental Specifications | |
| Operating Temperature | 0°C to 40°C |
| Dust/Water Resistance | IP 40 |
| Safety Specifications | |
| Electrical Safety | EN 61010, |
| EN 61557-7 | |
| Overvoltage category | CAT III, 600 V |
| CAT IV, 300V | |
| Mechanical and General Specifications | |
| Size | 124 x 61 x 27 mm |
| Weight | 200 g |
| Power supply | From unit under test |
| Warranty | 2 years |
Models: Fluke 9040 Phase Rotation Indicator
Includes:
- 3 self-retaining test probes (black)
- alligator clip
- user manual
Accessories: Fluke 9040 Phase Rotation Indicator
Probes (2)
- Fluke TLK290 Flexible Socket Probe Set
- Fluke TLK291 Fused Test Probe Set
