Fluke 789 ProcessMeter
Fluke 789 ProcessMeter now available in the biggest e-commerce site in Bangladesh. Tools Bangladesh provide a reliable & trusted Fluke Brand Products...
Model: Fluke 789 ProcessMeter

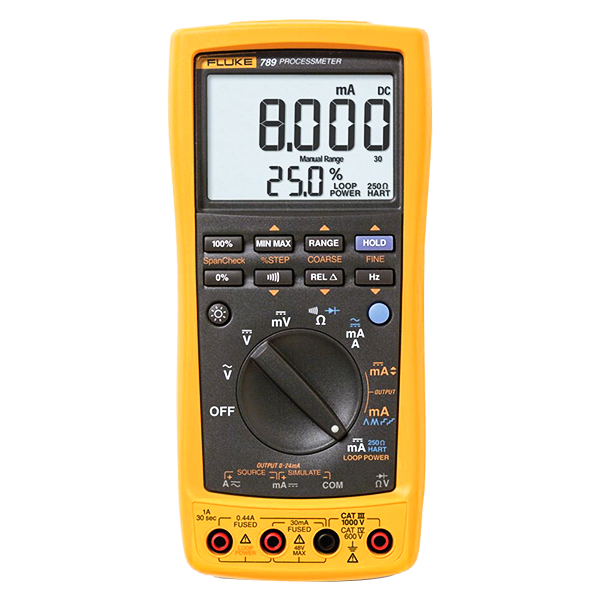

Fluke 789 ProcessMeter features a very large dual display with enhanced two-level backlight brightness settings.
Fluke 789 ProcessMeter not only provides you the accurate result but also the value of this meter top of the line. The most important thing about Fluke 789 ProcessMeter accuracy. This meter accuracy is 0.2% + 2 LSD (DC). Not only this meter has great accuracy but also the Range, Resolution, Frequency, Voltage measurement are spot on.
The Fluke 789 has a display that's not only twice as large as the Fluke 787B but also twice as bright with two levels of backlighting. And its built-in, selectable 250 ohm HART® resistor eliminates the need to carry a separate resistor.
It combines the functionality of a loop calibrator with the power of a digital multimeter and the wireless capabilities of Fluke Connect connectivity with an optional IR3000FC module.
Buy now this Affordable product from Tools Bangladesh. Iconic Engineering keeps the ability to deliver all over in Bangladesh.
Key Features: Fluke 789 ProcessMeter
- Ultimate troubleshooting tool for electricians and instrumentation professionals
- Combines the functionality of a loop calibrator with the power of a precision 1000 V, 440 mA True-RMS digital multimeter
- Optional IR3000FC module for wireless data logging capabilities via Fluke Connect® mobile App
- Includes 24 V loop power supply
- Features a very large dual display with enhanced two-level backlight brightness settings
Specifications: Fluke 789 ProcessMeter™
| Specifications | ||
| Current measurement | Range | 0-1 A AC or DC |
| Resolution | 1 mA | |
| Accuracy | 0.2% + 2 LSD (DC) | |
| Range | 0-30 mA | |
| Resolution | 0.001 mA | |
| Accuracy | 0.05% + 2 lSD | |
| Current sourcing | Range | 0-20 mA or 4-20 mA |
| Resolution | 0.05% of span | |
| Drive capability | 24 V Compliance or 1200 Ω @ 20 mA | |
| Frequency | to 19.999 kHz, 0.005% + 1 LSD | |
| Continuity | Beeps for resistance < 100 Ω | |
| Voltage measurement | Range | 0-1000 V AC (true-rms) or DC |
| Resolution | 0.1 mV to 1.0 V | |
| Accuracy | 0.1% Rdg + 1 LSD (VDC) | |
| Resistance measurement | to 40 MΩ, 0.2% + 1 LSD | |
| Diode test | 2.0 V shoes diode voltage drop | |
| Display current and % of span | Yes | |
| Auto Step, Auto Ramp | Yes | |
| Environmental Specifications | ||
| Operating temperature | -20°C to 55°C | |
| Storage temperature | -40°C to 60°C | |
| Humidity (without condensation) | 95% up to 30°C 75% up to 40°C 45% up to 50°C 35% up to 55°C |
|
| Temperature coefficient | 0.05 x (specified accuracy) per °C (for temperatures < 18°C or > 28°C) | |
| Safety Specifications | ||
| Electrical safety | Designed in accordance with IEC 1010-1, ANSI/ISA S82.01-1994 and CAN/CSA C22.2 No 1010.1-92 | |
| Overvoltage category | IEC 1010-1 CAT III 1000 V IEC 1010-1 CAT IV 600 V |
|
| Maximum voltage | 1000 V RMS | |
| Mechanical and General Specifications | ||
| Size (H x W x L) | 50 x 100 x 203 mm (1.25 x 3.41 x 7.35 in) | |
| Weight | 610 g (1.6 lbs) | |
| Batteries | 4 AA alkaline batteries | |
| Warranty | 3 years | |
| Battery life | 140 hours typical (measurement), 10 hours typical (sourcing 20 mA) | |
| Shock and vibration | Random, 2 g, 5-500 Hz 1 meter drop test |
|
Includes: Fluke 789 ProcessMeter
- AC175 Alligator Clips
- Four (4) AA 1.5 V alkaline batteries (installed)
- TL71 safety-designed test lead set
Accessories: Fluke 789 ProcessMeter
Cases (6)
- Fluke C100 Universal Carrying Case
- Fluke C125 Meter Case
- Fluke C25 Large Soft Case for DMMs
- Fluke CXT80 Extreme Case
- Fluke C510 Leather Meter Case
- Fluke CAMO-C25 Camouflage Carrying Case
Clips (6)
- Fluke AC220 SureGrip™ Alligator Clips
- Fluke AC280 SureGrip™ Hook Clips
- Fluke AC283 SureGrip™ Pincer Clips
- Fluke AC285 SureGrip™ Alligator Clips
- Fluke AC89 Heavy Duty Insulation Piercing Test Clip
- Fluke AC87 Heavy Duty Bus Bar Clip Set
Current clamps (5)
- Fluke i1010 AC/DC Current Clamp
- Fluke i200 AC Current Clamp
- Fluke i200s AC Current Clamp
- Fluke i400 AC Current Clamp
- Fluke i410 AC/DC Current Clamp
Connectors (1)
- Fluke BP980 Double Banana Plug Kit
High voltage probes (1)
- Fluke 80K-15 High Voltage Probe
Automotive (2)
- Fluke PV350 Pressure Vacuum Module
- Fluke TL28A Automotive Test Lead Set
Probes (4)
- Fluke 80PK-24 SureGrip™ Air Temperature Probe
- Fluke 80K-40 High Voltage Probe
- Fluke 80PK-26 SureGrip™ Tapered Temperature Probe
- Fluke 80T-150UA Universal Temperature Probe
Other (2)
- Fluke MeterCleaner™ Wipes
- Fluke TP912 Replacement Tips for TL910
Fiber optics (2)
- Fluke FOM Fiber Optic Meter
- Fluke FOS-850/1300 Fiber Optic Light Source
Lights (2)
- Fluke FOS-850 Fiber Optic Light Source
- Fluke L215 SureGrip™ Kit with Probe Light and Probe Extenders
Fluke calibration software (1)
- Fluke FlukeView® Forms Software with Cable
Visual IR thermometers (1)
- Fluke 80TK Thermocouple Module
Test probes (7)
- Fluke TL910 Electronic Test Probes
- Fluke TP38 Slim Reach Test Probe Set
- Fluke TP1 Slim Reach Test Probes
- Fluke TP2 Slim Reach Test Probes
- Fluke TP220 SureGrip™ Industrial Test Probes
- Fluke TP4 Slim Reach Test Probes
- Fluke TP80 Electronic Test Probes
Adapters (1)
- Fluke TP920 Test Probe Adapter Set
Test leads (17)
- Fluke H900 Test Lead Holder
- Fluke TL220 SureGrip™ Industrial Test Lead Set
- Fluke TL221 SureGrip™ Test Lead Extension Set
- Fluke TL222 SureGrip™ Silicone Insulated Test Leads
- Fluke TL223 SureGrip™ Electrical Test Lead Set
- Fluke TL224 SureGrip™ Insulated Test Leads
- Fluke TL238 SureGrip™ Test Lead Set for High Energy Environments
- Fluke TL27 Heavy Duty Test Lead Set
- Fluke TL40 Retractable Tip Test Lead Set
- Fluke TL71 Premium Test Lead Set
- Fluke TL75 Hard Point™ Test Lead Set
- Fluke TL76 2mm/4mm Test Lead Set
- Fluke TL81A Deluxe Electronic Test Lead Kit
- Fluke TL940 Mini-Hook Test Leads
- Fluke TL950 Mini-Pincer Test Leads
- Fluke TL960 Micro-Hook Test Leads
- Fluke TL970 Hook and Pincer Set
Cables (3)
- Fluke TL930 Patch Cords (60 cm)
- Fluke TL932 Patch Cords (90 cm)
- Fluke TL935 Patch Cords (60, 90, 120 cm)
