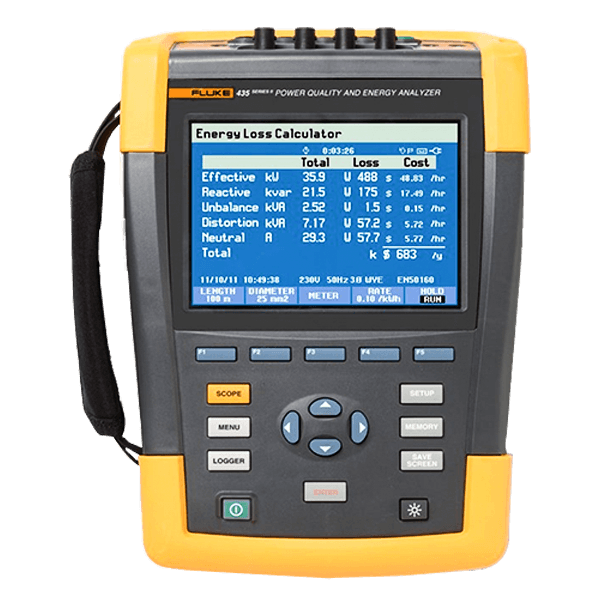

Fluke 435-II Power Quality and Energy Analyzers
Iconic Engineering Limited
Fluke 435-II Power Quality Analyzer is designed to help you minimize downtime. Rugged reliable this product you may take out from Tools Bangladesh with the best price in Bangladesh.
In stock
Model: Fluke 435-II Power Quality and Energy Analyzers
Fluke 434-II Energy Analyzer and 435-II Power Quality and Energy Analyzer are meant to urge on the order of you to minimize downtime, hastily troubleshoot capacity character issues and easily discover the costs of wasted liveliness. Downtime is costly and getting the data you quirk to solve to vital gift mood problems rapidly is key.
The 434-II and 435-II Analyzers measurement process and data output have been optimized to gain you entrance the most vital hint easily.
Fluke is a Reliable electronic brand to your hand. Just take out from Tools Bangladesh a delivery available anywhere in Bangladesh.
Key features: Fluke 435-II Power Quality and Energy Analyzers
Analyze power quality issues, calculate the costs of wasted energy and prevent downtime with the Fluke 434-II Energy Analyzer and Fluke 435-II Power Quality and Energy Analyzer.
- Advanced power quality health—At-a-glance power quality health data in real-time so you can make better maintenance decisions
- Energy loss calculator—Discover the costs of energy loss specifically caused by poor power quality
- Highest safety rating in the industry—CAT III 1000 V / CAT IV 600 V
Specifications: Fluke 434-II and 435-II Power Quality and Energy Analyzers
| Volt | ||||
| Model | Measurement Range | Resolution | Accuracy | |
| Vrms (AC + DC) | 434-II | 1 V to 1000 V phase to neutral | 0.1 V | ±0.1% of nominal voltage1 |
| 435-II | 1 V to 1000 V phase to neutral | 0.01 V | ±0.1% of nominal voltage1 | |
| Vpk | 1 Vpk to 1400 Vpk | 1 V | 5% of nominal voltage | |
| Voltage Crest Factor (CF) | 1.0 > 2.8 | 0.01 | ±5% | |
| Vrms½ | 434-II | 1 V to 1000 V phase to neutral | 0.1 V | ± 1 % of nominal voltage |
| 434-II and 435-II | 0.1 V | ±0.2% of nominal voltage | ||
| Vfund | 434-II | 1 V to 1000 V phase to neutral | 0.1 V | ± 0.5 % of nominal voltage |
| 435-II | 0.1 V | ± 0.1 % of nominal voltage | ||
| Amps (accuracy excluding clamp accuracy) | ||||
| Amps (AC + DC) | i430-Flex 1x | 5 A to 6000 A | 1 A | ±0.5% ±5 counts |
| i430-Flex 10x | 0.5 A to 600 A | 0.1 A | ±0.5% ±5 counts | |
| 1mV/A 1x | 5 A to 2000 A | 1A | ±0.5% ±5 counts | |
| 1mV/A 10x | 0.5 A A to 200 A (AC only) | 0.1 A | ±0.5% ±5 counts | |
| Apk | i430-Flex | 8400 Apk | 1 Arms | ±5% |
| 1mV/A | 5500 Apk | 1 Arms | ±5% | |
| A Crest Factor (CF) | 1 to 10 | 0.01 | ±5% | |
| Amps½ | i430-Flex 1x | 5 A to 6000 A | 1 A | ±1% ±10 counts |
| i430-Flex 10x | 0.5 A to 600 A | 0.1 A | ±1% ±10 counts | |
| 1mV/A 1x | 5 A to 2000 A | 1 A | ±1% ±10 counts | |
| 1mV/A 10x | 0.5 A A to 200 A (AC only) | 0.1 A | ±1% ±10 counts | |
| Afund | i430-Flex 1x | 5 A to 6000 A | 1 A | ±0.5% ±5 counts |
| i430-Flex 10x | 0.5 A to 600 A | 0.1 A | ±0.5% ±5 counts | |
| 1mV/A 1x | 5 A to 2000 A | 1 A | ±0.5% ±5 counts | |
| 1mV/A 10x | 0.5 A A to 200 A (AC only) | 0.1 A | ±0.5% ±5 counts | |
| Hz | ||||
| Hz | Fluke 434 @ 50 Hz Nominal | 42.50 Hz to 57.50 Hz | 0.01 Hz | ±0.01 Hz |
| Fluke 434 @ 60 Hz Nominal | 51.00 Hz to 69.00 Hz | 0.01 Hz | ±0.01 Hz | |
| Fluke 435 @ 50 Hz Nominal | 42.500 Hz to 57.500 Hz | 0.001 Hz | ±0.01 Hz | |
| Fluke 435 @ 60 Hz Nominal | 51.00 Hz to 69.00 Hz | 0.001 Hz | ±0.01 Hz | |
| Power | ||||
| Watts (VA, var) | i430-Flex | max 6000 MW | 0.1 W to 1 MW | ±1% ±10 counts |
| 1 mV/A | max 2000 MW | 0.1 W to 1 MW | ±1% ±10 counts | |
| Power Factor (Cos j/DPF) | 0 to 1 | 0.001 | ±0.1% @ nominal load conditions | |
| Energy | ||||
| kWh (kVAh, kvarh) | i430-Flex 10x | Depends on clamp scaling and V nominal | ±1% ±10 counts | |
| Energy Loss | i430-Flex 10x | Depends on clamp scaling and V nominal | ±1% ±10 counts Excluding line resistance accuracy | |
| Harmonics | ||||
| Harmonic Order (n) | DC, 1 to 50 Grouping: Harmonic groups according to IEC 61000-4-7 | |||
| Inter-Harmonic Order (n) | OFF, 1 to 50 Grouping: Harmonic and Interharmonic subgroups according to IEC 61000-4-7 | |||
| Volts % | f | 0.0% to 100% | 0.1% | ±0.1% ±n x 0.1% |
| r | 0.0% to 100% | 0.1% | ±0.1% ±n x 0.4% | |
| Absolute | 0.0 to 1000 V | 0.1 V | ±5%1 | |
| THD | 0.0% to 100% | 0.1% | ±2.5% | |
| Amps % | f | 0.0% to 100% | 0.1% | ±0.1% ±n x 0.1% |
| r | 0.0% to 100% | 0.1% | ±0.1% ±n x 0.4% | |
| Absolute | 0.0 to 600 A | 0.1 A | ±5% ±5 counts | |
| THD | 0.0% to 100% | 0.1% | ±2.5% | |
| Watts % | f or r | 0.0% to 100% | 0.1% | ±n x 2% |
| Absolute | Depends on clamp scaling and V nominal | — | ±5% ±n x 2% ±10 counts | |
| THD | 0.0% to 100% | 0.1% | ±5% | |
| Phase Angle | -360° to +0° | 1° | ±n x 1° | |
| Flicker | ||||
| Plt, Pst, Pst (1 min) Pinst | 0.00 to 20.00 | 0.01 | ±5% | |
| Unbalance | ||||
| Volts % | 0.0% to 20.0% | 0.1% | ±0.1% | |
| Amps % | 0.0% to 20.0% | 0.1% | ±1% | |
| Mains Signaling | ||||
| Threshold Levels | Threshold, limits and signaling duration is programable for two signaling frequencies | — | — | |
| Signaling Frequency | 60 Hz to 3000 Hz | 0.1 Hz | ||
| Relative V % | 0% to 100% | 0.10% | ±0.4% | |
| Absolute V3s (3 second avg.) | 0.0 V to 1000 V | 0.1 V | ±5% of nominal voltage | |
| General Specifications | ||||
| Case | Design Rugged, shock proof with integrated protective holster Drip and dust proof IP51 according to IEC60529 when used in tilt stand position Shock and vibration Shock 30 g, vibration: 3 g sinusoid, random 0.03 g 2 /Hz according to MIL-PRF-28800F Class 2 | |||
| Display | Brightness: 200 cd/m 2 typ. using power adapter, 90 cd/m 2 typical using battery power Size: 127 x 88 mm (153 mm/6.0 in diagonal) LCD Resolution: 320 x 240 pixels Contrast and brightness: user-adjustable, temperature compensated | |||
| Memory | 16GB Wi-Fi SD card for standard models or 8GB SD card for /INTL models (SDHC compliant, FAT32 formatted), up to 32GB optionally. Screen save and multiple data memories for storing data including recordings (dependent on memory size). | |||
| Real-Time Clock | Time and date stamp for Trend mode, Transient display, System Monitor and event capture | |||
| Environmental | ||||
| Operating Temperature | 0°C ~ +40°C; +40°C ~ +50°C excl. battery | |||
| Storage Temperature | -20°C ~ +60°C | |||
| Humidity | +10°C ~ +30°C: 95% RH non-condensing +30°C ~ +40°C: 75% RH non-condensing +40°C ~ +50°C: 45% RH non-condensing |
|||
| Maximum Operating Altitude | Up to 2,000 m (6666 ft) for CAT IV 600 V, CAT III 1000 V Up to 3,000 m (10,000 ft) for CAT III 600 V, CAT II 1000 V Maximum storage altitude 12 km (40,000 ft) |
|||
| Electro-Magnetic-Compatibility (EMC) | EN 61326 (2005-12) for emission and immunity | |||
| Interfaces | Mini-USB-B, Isolated USB port for PC connectivity SD card slot accessible behind instrument battery | |||
| Warranty | Three years (parts and labor) on main instrument, one year on accessories | |||
Includes: Fluke 434-II and 435-II Power Quality and Energy Analyzers
- BC430 Power Adapter
- International Plug Adapter Set
- BP290 (Single Capacity Li-ion Battery) 28 Wh (8 hours or more)
- TLS430 Test Lead and Alligator Clip Set
- WC100 Color Coding Clips and Regional Decals
- i430-Flexi-TF-II, 24 inches (61 cm) Length, 4 Flexible Current Probes
- 16GB Wi-Fi SD card (8GB SD card for /INTL models)
- PowerLog on CD (includes operator manuals in PDF format)
- USB Cable A - Mini B
- Soft Carrying Bag
Accessories: Fluke 434-II and 435-II Power Quality and Energy Analyzers
Adapters (1)
- Fluke BC430 Line Voltage Adapter/Battery Charger
Batteries (2)
- Fluke BP291 4800 mAh High Capacity Li-Ion Battery
- Fluke BP290 2400 mAh High Capacity Li-Ion Battery for Fluke 190-Series-II
Connectors (1)
- Fluke EBC290 External Battery Charger for BP290 and BP291
Clips (1)
- Fluke AC285 SureGrip™ Alligator Clips
Current clamps (5)
- Fluke i30s AC/DC Current Clamp
- Fluke i400s AC Current Clamp
- Fluke i5sPQ3, 5 A AC Current Clamps, 3-pack
- Fluke i5S AC Current Clamp
- Fluke i200s AC Current Clamp
Other (1)
- Fluke HH290 Hanging Hook for ScopeMeter 190-Series II
Test leads (1)
- Fluke TLS430 – Test Leads and Alligator Clips (4 black, 1 green)
Wireless (1)
- Fluke Connect® Wireless SD Card
Test probes (1)
- Fluke FTP17XXPQ Fused Test Probes Set
Probes (2)
- Fluke i1000s AC Current Probe
- Fluke MP1 Magnet Probe 1, Magnetic Probe Tips
